Measuring tank according to the measurement medium is divided into two categories: liquid measurement, powder particles solid measurement.
Introduction
According to the measurement accuracy level is divided into ordinary measurement, precise measurement of two levels.
Manufacturing metering tanks using material classification; carbon steel, aluminum, titanium, plastic, large-capacity metering tanks using carbon steel shell ten lined with corrosion-resistant non-ferrous metal plates, carbon steel shell ten lined with plastic, rubber lining.
Structure has vertical, horizontal two types.
Main components: cylinder, head, flange, support, interface pipe & middot; manhole, etc.
Method principle
The use of liquid level meter, ultrasonic detector, pressure gauge and other detection instruments to measure the material in the container height difference, calculate the amount of material storage, according to the production process and technical requirements, access to the detection instrument to get the material height difference signal, through signal amplification automatically control the material import and export executive parts (such as pumps, valves, etc.), the material for effective measurement and control. It is characterized by simple structure, convenient operation and automatic control. Suitable for material storage, measurement precision requirements are not high occasions.
Precise measurement has quantitative detection, and weighing detection of two measurement methods
Quantitative detection measurement: it is based on common measurement methods and principles, through the container structure improvement, maximize the amplification of the final liquid in the measuring tube level difference between high and low to achieve a high degree of accuracy of 0.5% of the material measurement, there are two kinds of products applicable to different places of use, one is each measuring tank can only measure a capacity such as 20 liters, 50 liters, 100 liters, 500 liters, 1000 liters and other specifications. It is suitable for inspection and testing departments and personnel to measure the capacity of the tank. Applicable inspection, testing departments and personnel of the liquid flow devices, equipment to test the accuracy of the use, and the production process of quantitatively unchanged occasions. Another in order to achieve the production process needs to change the number of quantitative improvement of a product, it is through the internal structure of the metering tank to achieve the transformation of a metering tank has several quantitative measurement function, suitable for high-precision measurement of liquids and often change the capacity of the production process and occasions.
Weighing detection metering: the method of gravity metering refilling, no need to calculate the weight of the liquid, the use of & ldquo; Toledo & rdquo; load cell and weighing terminals to achieve the proportion of liquid and other raw materials refilling. In order to strictly check the accuracy, the whole system is controlled by Mitsubishi or Siemens PLC, operated by touch screen display, and the fluctuation of the material is automatically compensated by the PLC after calculation. System measurement accuracy is controlled at 0.5%.
Measuring tank structure type is divided into: upper and lower head vertical, upper head under cone bottom vertical, flat cover under cone bottom vertical, flat bottom flat cover vertical, double head horizontal, flat head horizontal measuring tank.
| Type | Volume | Size | Capacity |
| MJ-01 | 1.49m³ | φ1.4X1.55 | 50-150 thousand m3 AAC block production line |
| MJ-02 | 1.88m³ | φ1.4X1.8 | 150-200 thousand m3 AAC block production line |
| MJ-03 | 2.2m³ | φ1.5X1.85 | 200-300 thousand m3 AAC block production line |
| Type | Volume | Size | Capacity |
| LJC-1 | 2.54m³ | φ1.4X1.9 | 50-150 thousand m3 AAC block production line |
| LJC-2 | 3.05m³ | φ1.5X2 | 150-200 thousand m3 AAC block production line |
| LJC-3 | 2.88m³ | φ1.7X2.05 | 200-300 thousand m3 AAC block production line |

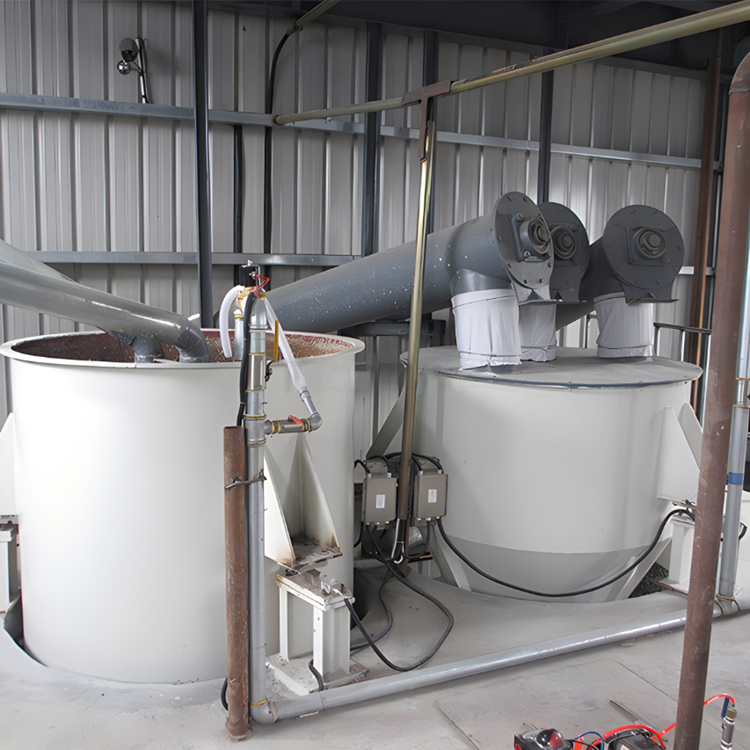

The electronic powder weighing scale consists of a bin, a support ring, a load electronic sensor, and a pneumatic butterfly valve.
The barrel is shaped like a truncated cone, which has the advantage of smooth material dropping and is made of steel plate.
The support ring is composed of a steel plate, a bin seat plate, and three load electronic sensors suspended between the support ring. The barrel is equipped with a pneumatic butterfly valve to control the dropping process.
At the end of a shift, cut off the power supply, clean the barrel wall, and ensure that the powder is weighed correctly.
Wipe the dust off the electronic sensor and weighing display.
Role of Powder and Slurry Electric Scale: Measures and controls the exact weight of dry powders (e.g., cement, lime, and gypsum) and slurry (e.g., water and sand mix) for accurate batching in the production process. Ensures precise dosing to maintain consistency in the material mix.
Process It Belongs To: Raw Material Weighing and Batching process, ensuring the correct proportions of ingredients are added before mixing.
Related Equipment Before:
Storage Silos – for storing powders like cement and lime.
Screw Conveyors – for transporting powders and slurry to the scale.
Related Equipment After:
Mixing Equipment – for blending the accurately weighed materials into a uniform slurry.
Casting Molds – used to pour the mixed slurry for shaping aerated concrete blocks.
