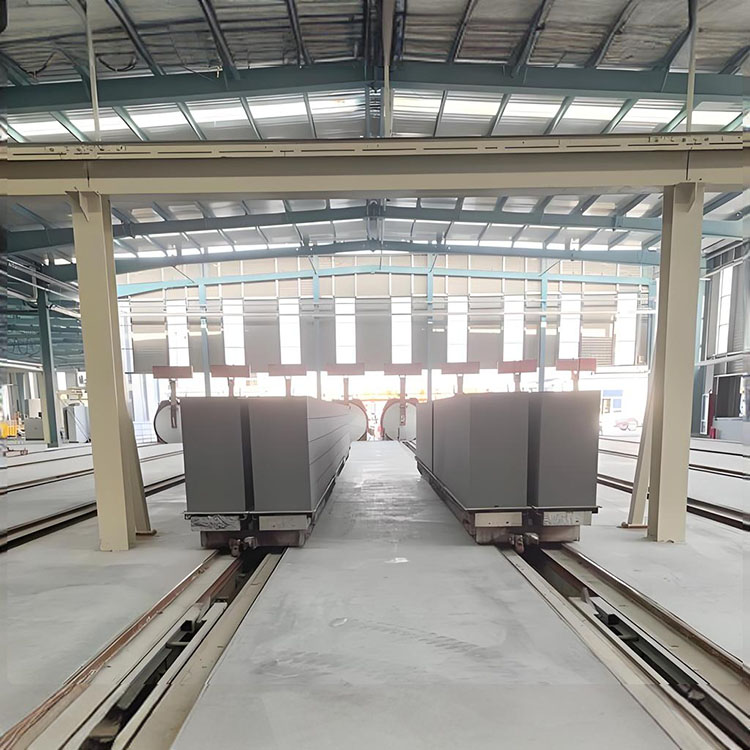

In the autoclaved curing section of the aerated block production line, the traction mechanism for autoclaving carts is a crucial component ensuring the smooth operation of the entire production process. Below is a detailed introduction to this traction mechanism:
I. Function of the Traction Mechanism
The traction mechanism for autoclaving carts primarily serves to pull the carts loaded with aerated block embryos from one end of the production line into the autoclave for curing, and subsequently pull them out after curing to transport them to the finished product storage area. This mechanism is of great significance in enhancing production efficiency and ensuring product quality.
II. Composition of the Traction Mechanism
The traction mechanism for autoclaving carts typically comprises the following parts:
Power Unit: The core component, typically employing an electric motor or hydraulic motor as the power source. The electric motor drives the traction mechanism through chains, gears, and other transmission devices; whereas, the hydraulic motor realizes power transmission and control through the hydraulic system.
Transmission Device: Responsible for transmitting power generated by the power unit to the traction carts. Common transmission methods include chain drive, belt drive, and wire rope drive, each with its own advantages and disadvantages, requiring comprehensive consideration based on specific production line conditions and actual needs.
Control System: Regulates the operating speed and direction of the traction mechanism. Modern aerated block production lines often employ PLC (Programmable Logic Controller) or DCS (Distributed Control System) for automated control, achieving precise control and optimization of the production process.
Rail System: Provides the running path and support for the autoclaving carts. Rails are generally laid along the sides of the production line or at the front and rear of the autoclave, ensuring smooth cart movement. Rail design must meet the load-bearing capacity and operational stability requirements of the carts.
III. Working Principle of the Traction Mechanism
The working principle of the traction mechanism for autoclaving carts is outlined as follows:
Startup Phase: After the aerated block embryos are cut and loaded onto the autoclaving carts on the production line, the control system sends a startup signal, activating the power unit to generate power.
Traction Phase: The transmission device transfers power to the traction carts, driving them along the rails towards the autoclave. During this process, the carts must maintain stable movement to prevent collisions or tilting.
Entry into Autoclave Phase: As the carts approach the autoclave, they are guided into the chamber via a bridge device. Inside, the carts and embryos undergo autoclaved curing according to specified process parameters.
Exit from Autoclave Phase: Upon completion of curing, the control system sends an exit signal, reactivating the traction mechanism to pull the carts out of the autoclave. The carts then return to the finished product storage area along the rails, ready for the next work cycle.
IV. Maintenance and Servicing of the Traction Mechanism
Regular maintenance and servicing are essential to ensure the smooth operation and extended lifespan of the traction mechanism for autoclaving carts. Key aspects include:
Inspecting the Transmission Device: Regularly check the wear and lubrication status of the transmission device, promptly replacing worn-out components and applying adequate lubricant.
Checking the Rail System: Ensure the rails are even, free of debris, and undamaged, preventing obstructions or tilting during cart movement.
Inspecting the Control System: Verify the integrity of electrical components and the security of wiring connections to prevent electrical failures that could disrupt production line operations.
Cleaning and Servicing: Regular cleaning and servicing maintain the traction mechanism's cleanliness and contribute to longer equipment lifespan.
In conclusion, the traction mechanism for autoclaving carts plays a pivotal role in the autoclaved curing section of the aerated block production line. A thorough understanding of its composition, working principle, and maintenance requirements ensures seamless production line operation and consistent product quality improvement.
