The packaging section in the autoclaved aerated concrete (AAC) block production line represents a crucial link in the manufacturing process, with the automatic pallet conveying mechanism playing a pivotal role. This mechanism is primarily responsible for automatically transferring AAC blocks, once cured in the autoclave, to the packaging area for subsequent packing and transportation. Below is a detailed introduction to the automatic pallet conveying mechanism:
I. Composition Structure
The automatic pallet conveying mechanism typically comprises the following main components:
Pallet Dispenser: Automatically dispenses empty pallets onto the conveyor line, preparing them to receive blocks.

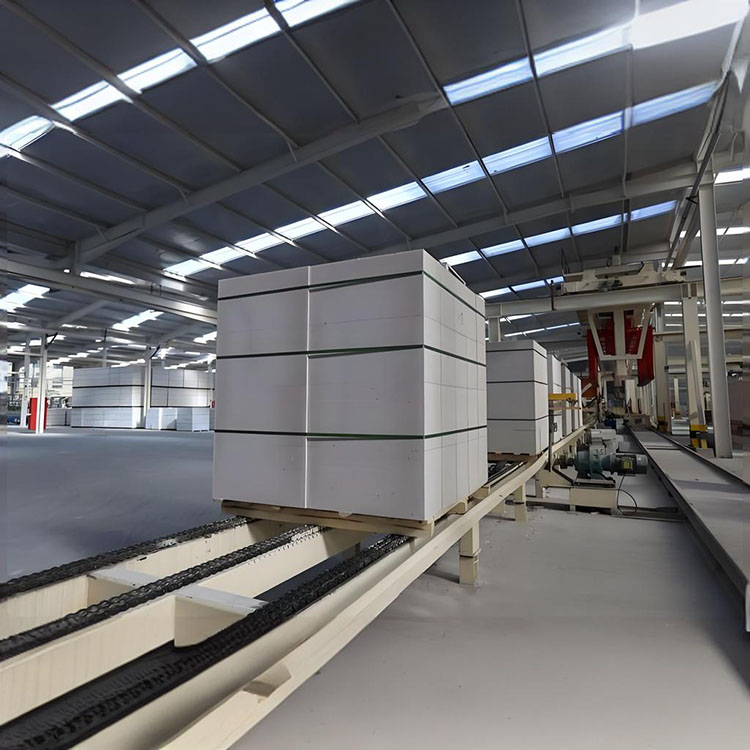

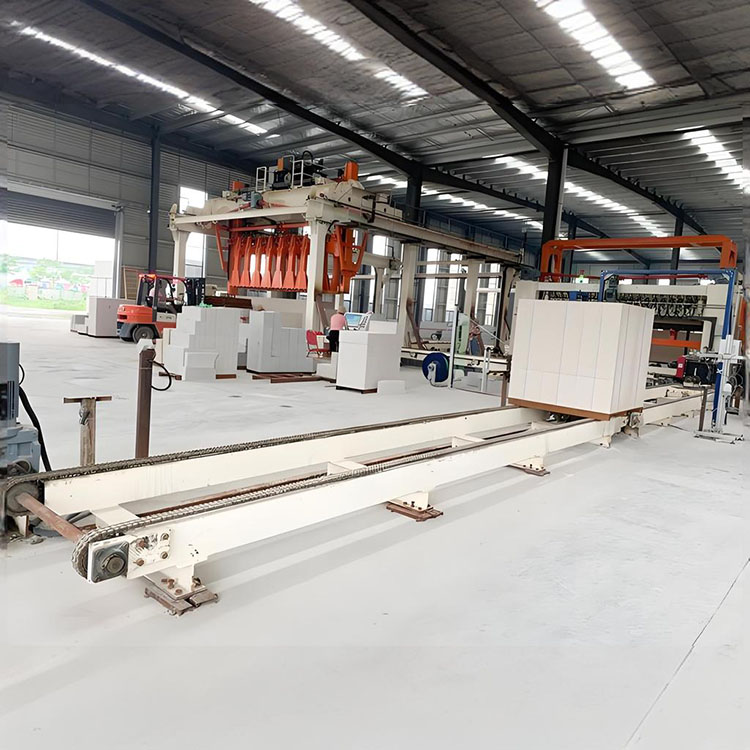

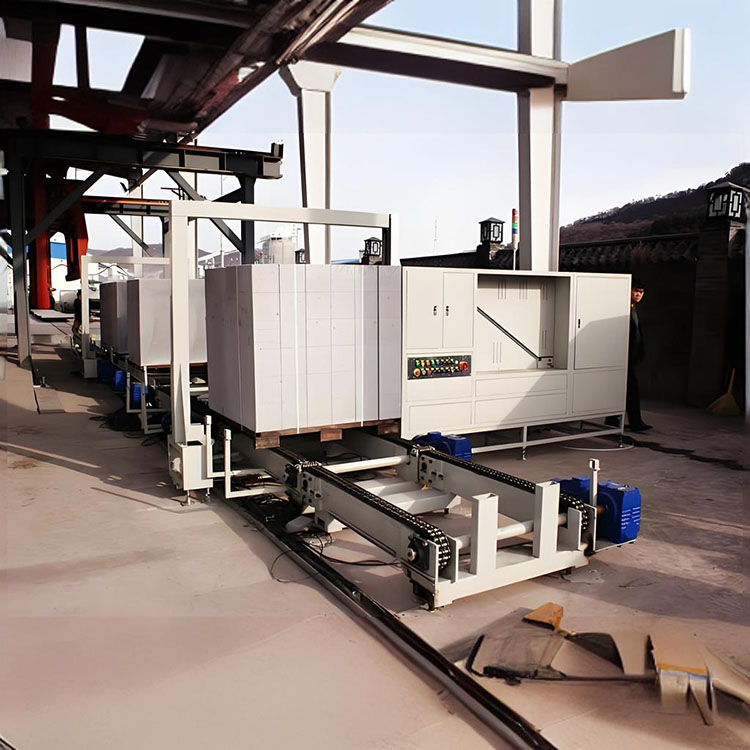

Chain Conveyor: As the core conveying equipment, it continuously and smoothly transports the pallets with blocks along a predetermined route to the packaging area. The chain conveyor employs chains as traction members, offering advantages such as high conveying capacity, long conveying distance, and stable conveyance.
Guiding Device: Installed on both sides of the conveyor line, it ensures that pallets maintain correct orientation and position during transportation, preventing deviation or tipping.
Sensors and Control System: Sensors installed on the conveyor line monitor the position and status of pallets and blocks in real-time, feeding this information back to the control system. The control system adjusts the conveyor's speed and position based on received information, ensuring safe and efficient transportation.
II. Working Principle
The working principle of the automatic pallet conveying mechanism is as follows:
Once AAC blocks complete curing in the autoclave, they are transported out by the autoclave cart and hoisted onto an empty pallet by a semi-finished product lifting device.
The pallet dispenser automatically dispenses a new empty pallet onto the conveyor line, ready to receive the next batch of blocks.
The chain conveyor initiates, smoothly conveying the pallet loaded with blocks along the conveyor line to the packaging area. Throughout this process, the guiding device ensures the pallet maintains correct orientation and position.
Sensors continuously monitor the position and status of pallets and blocks, relaying this information to the control system. Based on the received data, the control system adjusts the conveyor's speed and position to accommodate varying transportation needs.

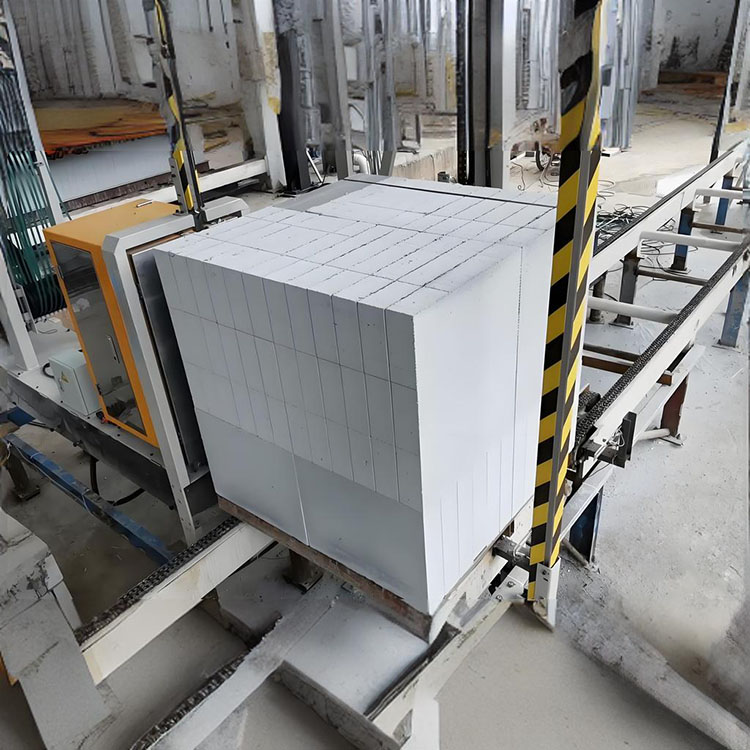

Upon reaching the packaging area, the pallet is subjected to packing by the packaging equipment. Meanwhile, the chain conveyor continues to transport the next pallet loaded with blocks to the packaging area, facilitating a continuous and efficient production flow.
III. Advantages and Characteristics
The automatic pallet conveying mechanism boasts the following advantages and characteristics:
High Automation Level: It automatically handles tasks such as pallet dispensing, conveying, and positioning, reducing manual intervention and labor intensity.
High Conveying Efficiency: Employing the chain conveyor as the core conveying equipment, it offers high conveying capacity, long conveying distance, and stable conveyance, enhancing production efficiency and product quality.
Safety and Reliability: Equipped with safety devices like guiding devices, sensors, and a control system, it continuously monitors the position and status of pallets and blocks, ensuring safe and reliable transportation.
Strong Adaptability: It can be flexibly adjusted and optimized based on varying production requirements and site conditions, catering to diverse customer needs.
In conclusion, the automatic pallet conveying mechanism is a vital equipment in the packaging section of AAC block production lines. Its efficient, safe, and reliable performance is crucial for enhancing production efficiency and product quality.
